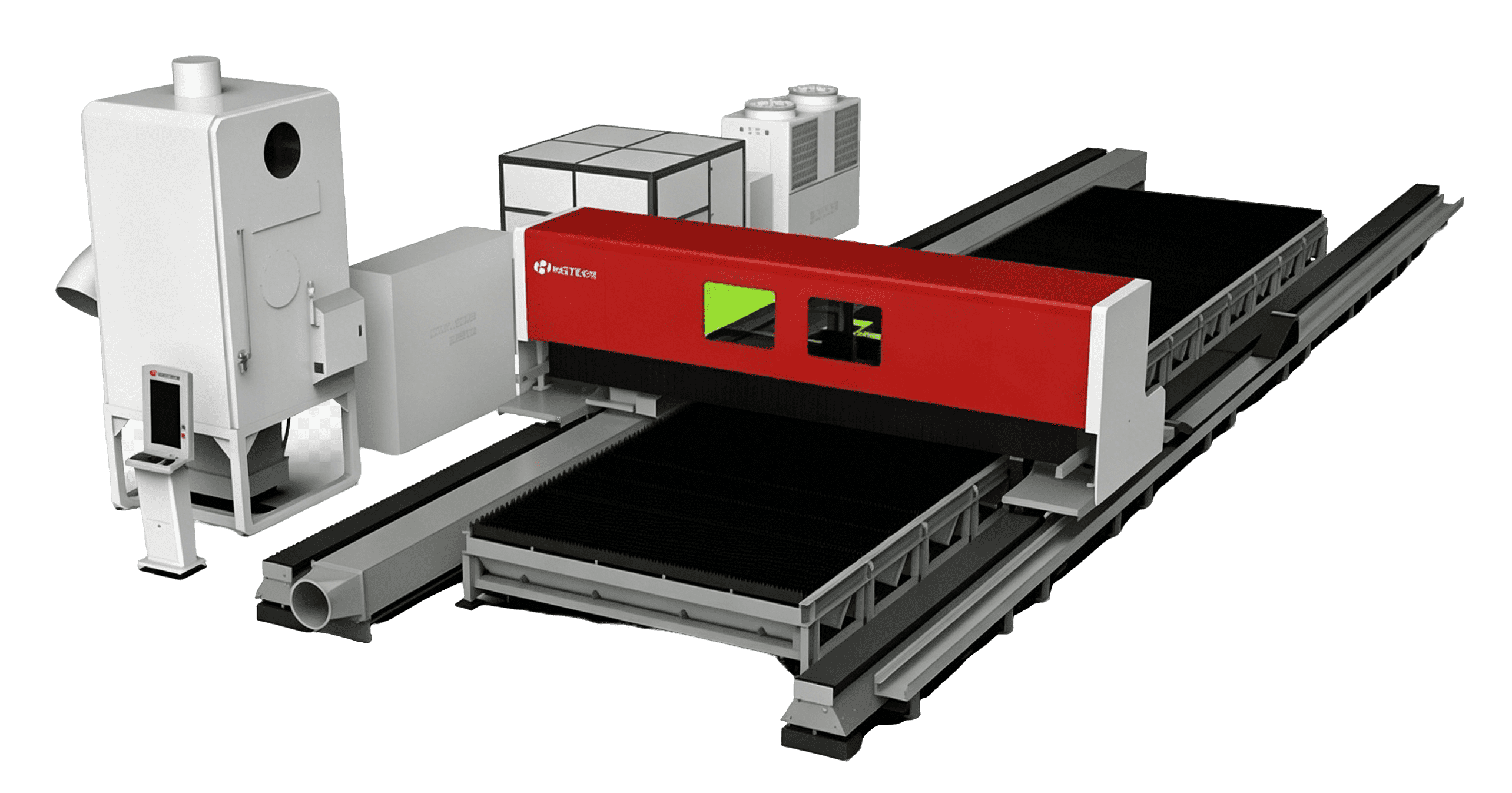

WALC High Power 2D Laser Cutting Machine
WALC-F Series
The standard WALC-F series high power large format 2D laser cutting machine is a processing equipment used for the large equipment and infrastructure manufacturing industries such as construction machinery,bridges and ships. It can process the cutting of super-large workpieces (up to 6 meters wide)at one time and can achieve high-quality cutting of medium and thick plates.Its characteristics: super large format can be selected,with stable operation and high precision,humanized design,safe ,suitable for continuous processing.

Product Data

WALC-F series

WALC High Power 2D Laser Cutting Machine



The standard WALC-F series high power large format 2D laser cutting machine is a processing equipment used for the large equipment and infrastructure manufacturing industries such as construction machinery,bridges and ships. It can process the cutting of super-large workpieces (up to 6 meters wide)at one time and can achieve high-quality cutting of medium and thick plates.Its characteristics: super large format can be selected,with stable operation and high precision,humanized design,safe ,suitable for continuous processing.



Stability

Heavy-load double-drive gantry structure, with adaptive adjustment mechanism for the auxiliary guide to ensure continuous cutting without debugging;

Safety

The beam is equipped with protective shield and safety grating,and equipped with radiation-proof observation window to avoid laser radiation and splash;

Humanization

Equipped with operating table, safety bar and seat that can be moved with the beam, which is convenient for operation and easy to observe the cutting status,and can also be equipped with independent floor operating table according to the demand.





Industry Application

Bridge Manufacturing

Bridge
Manufacturing

Steel Tower

Steel
Tower

Automobile Manufacturer

Automobile
Manufacturer

Shipbuilding

Shipbuilding

Construction Machinery

Construction
Machinery







Project Main Parametrs
Basic Specification Laser Power 6000-30000W
Focal Length F200 ~ F300mm automatic focus
Operating System Windows 10(Chinese and English)
CNC System FARLEY-A, FARLEY-H
Display System 23.6-inch touch display (mouse operation supported)
Machining Range Vertical Cutting Metal material arbitary shape workpiece cutting, marking, etc.
Processing Capability Carbon Steel Plate Cutting Thickness(O2) Vertically cut MAX 80mm
Stainless Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm
Aluminum Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm
Processing Stroke X Axis Stroke MAX 50m(cutomizable)
Y Axis Stroke MAX 6m(cutomizable)
Z Axis Stroke 250mm
Processing Accuracy X Axis Positioning Accuracy 0.1mm/10m(≤10m),0.2mm/full length
YX Axis Positioning Accuracy 0.05mm
X Axis Repeated Positioning Accuracy 0.05mm/10m(≤10m),0.1mm/full length
Y Axis Repeated Positioning Accuracy 0.03mm
Processing Speed Maximum Acceleration 0.6G
X/Y Axis Maximum Positioning Speed 40m/min
X/Y Axis Maximum Linkage Positioning Speed 56m/min
Power Number of Phases 3
Rated Voltage 380V
Frequency 50Hz
Total Power Supply Protection Level IP54
