Material Handling Has Become the Real Production Bottleneck

In modern sheet metal fabrication, the main production bottleneck is no longer laser cutting speed, but material handling and upstream preparation. Many factories operate high-power laser cutting machines at full capacity, yet productivity is limited by manual sheet loading, forklift handling, and inefficient flat sheet logistics. Traditional sheet-based processing requires purchasing, storing, and manually loading pre-cut sheets, which increases cost and reduces production continuity.

To solve these inefficiencies, more manufacturers are adopting coil-fed laser cutting lines, which integrate coil uncoiling, precision leveling, automatic feeding, and laser cutting into a continuous automated workflow. This eliminates multiple intermediate steps and significantly improves production efficiency.

From Flat Sheets to High-Efficiency Laser Blanking Production

A coil-fed laser cutting line fundamentally changes the production model. Instead of relying on flat sheet inventory, steel coils are directly used as raw material. The coil is first unwound, then passed through a precision leveling system to remove residual stress and improve flatness. After stabilization, the material is automatically fed into the laser cutting unit for continuous processing, enabling a seamless flow from raw material to finished parts.

Compared with traditional sheet processing, continuous coil feeding significantly reduces downtime. In conventional production, laser machines often pause due to material changeovers or sheet preparation. Coil-fed systems eliminate these interruptions, allowing higher machine utilization and improved throughput for automotive, home appliance, elevator, storage, and structural steel industries.

Integrated High-Performance Solution: HGLaser GR-D Line

To further enhance efficiency and stability in high-volume production, advanced systems such as the HGLaser GR-D Belt-Type Decoiling, Leveling & Laser Blanking Line provide a fully integrated solution for automotive sheet metal manufacturing.

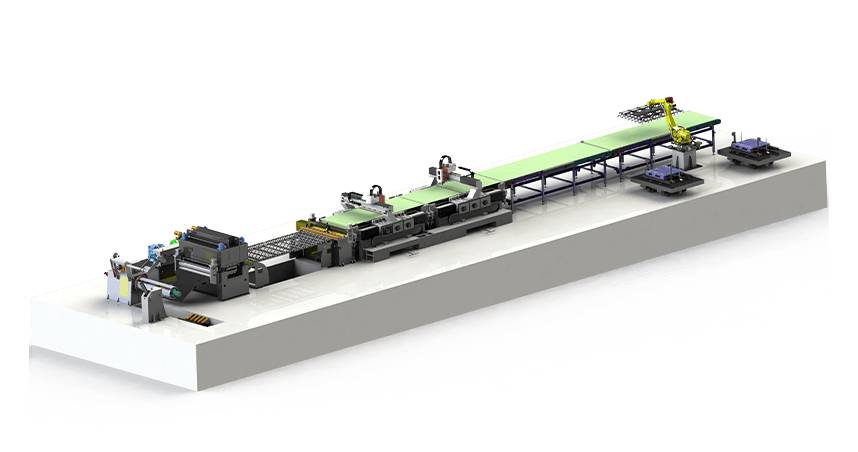

The HGLaser GR-D is a fully integrated production line that combines decoiling, leveling, belt conveying, and dual-head laser cutting into a single high-efficiency system, designed for high-volume automotive sheet metal processing. It is compatible with cold-rolled and galvanized steel coils up to ≤2250 mm width, delivering stable leveling and feeding speeds of 0–50 m/min with a positioning accuracy of ±0.05 mm.

The belt conveying system effectively prevents surface scratching, ensuring high-quality sheet protection throughout the process. The dual laser heads support synchronized flying cutting, significantly doubling processing efficiency. Equipped with intelligent nesting software, the system improves material utilization by up to 15%, reducing waste and overall production cost. The process eliminates the need for stamping dies, enabling flexible and rapid production changeovers.

The line can be further expanded with automatic stacking and scrap sorting systems, making it highly suitable for automotive sheet metal mass production. With a compact footprint, low maintenance requirements, and full CNC automation, it delivers a highly efficient, cost-effective, and intelligent manufacturing solution.

Efficiency, Quality, and Digital Manufacturing Integration

Another key advantage is cost efficiency. Flat sheet production requires large inventories of different specifications, increasing storage costs and capital pressure. Coil-based processing reduces inventory dependency and improves material utilization through intelligent nesting software, minimizing waste and increasing yield.

However, coil materials contain residual stress from rolling and winding, which may cause deformation if not properly controlled. Therefore, precision leveling is a critical part of a coil-fed laser cutting line, ensuring material stability and consistent cutting quality.

With the integration of MES systems, intelligent nesting, and automated material handling, modern systems are becoming highly digitalized. Real-time monitoring, automatic scheduling, and production optimization help manufacturers reduce labor dependency and improve efficiency.

As laser power continues to increase to 30 kW, 40 kW and beyond, production capacity is no longer limited by cutting speed but by material flow efficiency. A coil-fed laser cutting line connects raw material supply with finished part production, making it a key solution for smart manufacturing transformation.

About HGLaser

HGLaser is a pioneer and leading enterprise in industrial laser applications in China, as well as a globally recognized provider of laser processing solutions.

We focus on the development of laser intelligent equipment, measurement and automation production lines, and smart factory solutions, delivering integrated systems for advanced intelligent manufacturing.

With a deep understanding of manufacturing industry trends, we continuously expand our product portfolio and solution capabilities. We are committed to the integration of automation, digitalization, intelligence, and manufacturing technologies, providing a wide range of industries with laser cutting systems, laser welding systems, laser marking equipment, laser texturing solutions, laser heat treatment systems, laser drilling machines, and supporting laser and plasma processing equipment.

In addition, we deliver complete solutions for special laser processing equipment, automated production lines, and smart factory construction.
