Application Background

Automotive Head-Up Display (HUD) systems rely on high-precision curved glass to ensure accurate image projection and stable optical performance. As smart cockpits and ADAS technologies expand in modern vehicles, demand for automotive HUD curved glass laser cutting continues to increase.

HUD glass typically uses tempered or laminated structures, where even minor edge defects can impact display clarity and assembly yield. Conventional mechanical cutting methods often introduce stress, micro-cracks, and inconsistent edge quality, making them unsuitable for high-end automotive optical applications. This drives the adoption of laser-based non-contact cutting solutions for improved precision and stability.

Laser Cutting Technology and Process Advantages

The main challenge in HUD curved glass processing lies in combining complex 3D geometry with strict optical quality requirements. Unlike flat glass, curved surfaces require synchronized multi-axis motion control and precise trajectory compensation to maintain cutting accuracy.

Modern laser cutting systems for HUD glass use high-energy-density beams in a non-contact process, eliminating mechanical stress and significantly reducing edge chipping and micro-crack formation. Integrated vision alignment systems enable real-time contour recognition and positioning correction, ensuring consistent processing accuracy across different batches and geometries.

Process stability is critical in mass production. Laser systems must maintain stable power output, high dynamic response, and repeatable accuracy under continuous operation. To meet automotive manufacturing requirements, adaptive process control is applied, allowing automatic adjustment of laser parameters such as power, speed, and focus based on material variation.

This improves yield rate and reduces manual setup time while ensuring consistent optical quality, edge integrity, and dimensional precision in HUD curved glass laser processing.

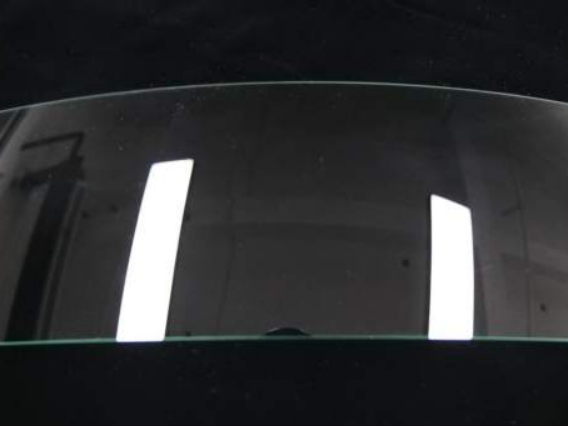

HGLaser HUD Curved Glass Laser Cutting System is specifically designed for automotive HUD systems and 3D curved glass processing, integrating a 3D five-axis motion platform with an ultrafast laser processing system, supporting glass thickness from 0.35 to 4 mm. Equipped with the Aeye vision alignment system, it achieves a cutting accuracy of ±50 μm and enables full-panel automatic cleaving, improving processing efficiency by 150% while controlling edge chipping controlled below 50 μm. The system supports cutting of coated glass and delivers a yield rate above 99%, while integrating laser cutting, panel cleaving, and laser marking for product traceability within a single automated workflow. Designed for mass production of automotive AR-HUD and W-HUD curved reflective mirrors, this solution provides a high-precision, high-efficiency manufacturing platform for advanced smart cockpit glass processing.

Industrial Value and Future Trend

Laser-based processing has become a key enabling technology for automotive HUD curved glass manufacturing. It supports both high-precision customization and large-scale production, meeting the dual requirements of flexibility and efficiency in automotive supply chains.

Future systems will further integrate AI-driven process optimization and real-time quality monitoring to improve defect detection and process consistency. With increasing demand from electric vehicles and intelligent cockpit systems, automotive HUD glass laser cutting solutions will continue to evolve toward higher automation, tighter tolerance control, and fully digitalized manufacturing workflows.

For OEMs and Tier 1 suppliers, adopting advanced laser processing technology is essential to ensure optical performance, production stability, and competitiveness in next-generation automotive display systems.
