Industry Challenges and Traditional Limitations

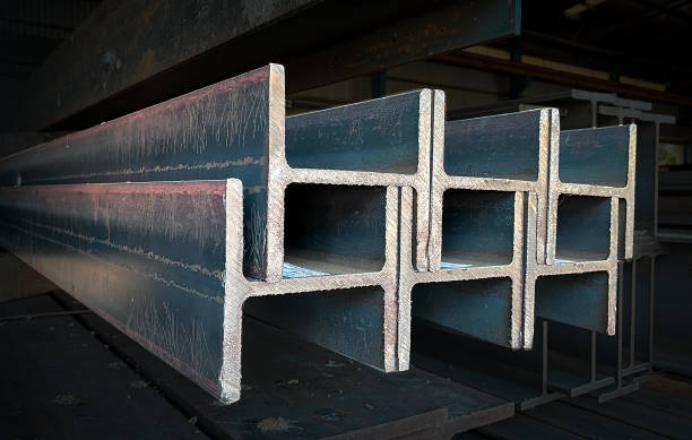

H-beam steel is a critical load-bearing component in steel structures, bridges, shipbuilding, and heavy machinery. Traditionally, it has been processed using oxy-fuel cutting, plasma cutting, and mechanical sawing. However, as modern construction demands higher precision, consistency, and efficiency, these conventional methods reveal significant limitations.

Large heat-affected zones (HAZ) reduce material performance, dimensional inaccuracies increase, and secondary finishing processes are labor-intensive. In addition, production cycles struggle to meet the requirements of automated manufacturing lines. For complex structures, these issues negatively impact assembly accuracy and overall engineering quality.

To address these challenges, the industry is shifting toward high-precision, low-deformation, and fully automated laser cutting solutions.

Advantages of H-Beam Laser Cutting Technology

H-beam laser cutting uses a high-energy-density laser beam to melt or vaporize material in a non-contact process. Controlled by advanced CNC systems, it enables integrated processing of complex contours, bevels, and precise hole positions.

Compared with traditional thermal cutting methods, laser cutting delivers narrower kerf width, smoother edges, and minimal heat-affected zones, significantly reducing deformation and eliminating extensive secondary processing.

Gantry structures, five-axis motion systems, and 3D cutting heads enable multi-angle bevel cutting and complex spatial trajectories, meeting the demanding requirements of bridge nodes, building connections, offshore platforms, and heavy equipment components.

When integrated with automated material handling systems and MES production management, the workflow forms a closed-loop digital manufacturing process, significantly improving efficiency and equipment utilization.

Laser cutting also maximizes material utilization. Precise cutting paths and minimal thermal distortion reduce scrap rates and rework costs. For high-strength or thick H-beams, laser processing ensures stable quality and avoids defects such as heavy oxidation or rough edges, improving downstream welding quality and structural reliability.

With intelligent manufacturing development, modern systems integrate visual positioning, automatic compensation algorithms, and real-time monitoring to dynamically adjust cutting parameters, ensuring stable and flexible production.

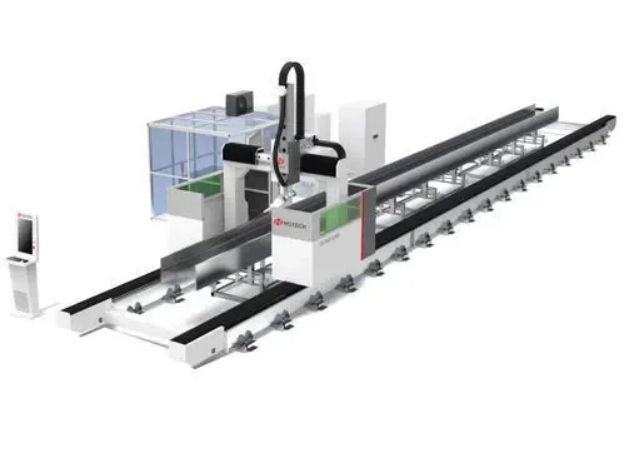

HGLaser STC Series Structural Steel 3D Laser Cutting Machine

The HGLaser STC Series Structural Steel 3D Laser Cutting Machine is a five-axis system specifically designed for H-beams and structural profiles. It is equipped with a 6,000–20,000W fiber laser, FARLEY five-axis system, and a 23.6-inch touchscreen.

The machine can process H-beams with a width of ≤ 1000 mm, a height of ≤ 500 mm, and a length of ≤ 12 m. It supports vertical cutting of carbon steel up to 30 mm thickness and bevel angles from 0° to 45°.

Positioning accuracy is ±0.05 mm/10 m, with repeat positioning accuracy of ±0.03 mm. The cut surface roughness reaches Ra ≤ 6.3 μm, enabling direct welding without additional finishing.

The system supports Tekla, STEP, and IGS file formats. With a single clamping setup, it enables cutting, drilling, beveling, and marking, making it suitable for industries such as steel structures, bridges, and towers.

Applications and Industry Outlook

H-beam laser cutting is widely used in steel structure buildings, bridges, heavy machinery, shipbuilding, and clean energy equipment.

As large-scale projects move toward modularization and standardization, laser cutting is increasingly replacing traditional thermal processes and becoming a core technology in steel fabrication.

With advancements in high-power lasers and intelligent control systems, H-beam laser cutting will continue to evolve toward thicker materials, higher productivity, full automation, and seamless integration with digital factories.

For manufacturers seeking precision, efficiency, and competitiveness, adopting advanced laser cutting solutions is a key pathway to upgrading production capabilities and meeting modern engineering demands.
