From Traditional Methods to Laser PCB Depaneling

As automotive electronics evolve toward higher integration, greater reliability, and stricter safety standards, post-SMT depaneling is undergoing a significant transformation. Laser PCB depaneling technology is rapidly replacing traditional mechanical cutting and punching methods, becoming a key process in high-end automotive electronics manufacturing.

Unlike contact-based methods that may introduce stress concentration, micro-cracks, burrs, or delamination, laser PCB depaneling provides a non-contact, low-stress process that enables precise separation without damaging PCB integrity. This capability is critical for Electronic Control Units (ECUs), powertrain control boards, and ADAS modules, where long-term reliability is essential.

Key Advantages: Precision, Yield, and Flexibility

The core advantage of laser PCB depaneling lies in its high precision and process stability. Using a high-energy-density laser beam, the system achieves micron-level cutting and accurate separation of complex contours without physical contact, eliminating tool wear-related deviations.

Advanced vision alignment systems detect fiducial marks and perform automatic path compensation, ensuring consistent quality in mass production. In automotive electronics, where even minor deviations can impact safety, this consistency is essential.

Laser depaneling also offers strong efficiency and flexibility advantages. Traditional mechanical methods require frequent tool changes and fixture adjustments when switching product types, resulting in downtime. In contrast, laser systems support software-driven path switching, enabling rapid changeovers and flexible manufacturing.

The non-contact process eliminates tool wear, reduces maintenance costs, and supports long-term continuous operation. For automotive production environments with multiple models and small batch sizes, this significantly improves responsiveness and production efficiency.

In addition, laser PCB depaneling enhances product quality. It preserves PCB structural integrity, minimizes hidden cracks, and produces smooth, burr-free edges without secondary processing. Integrated with MES systems and inline inspection, it enables real-time monitoring and full process traceability, improving production control and transparency.

Intelligent Process Integration

In typical workflows, the process begins with automated loading, followed by CCD-based vision alignment for precise positioning. The laser then performs high-speed cutting along optimized paths.

Intelligent control systems automatically adjust laser power and speed according to board thickness and material type, ensuring stable processing quality. This adaptability is especially important for high-end applications such as EV battery control boards, in-vehicle communication modules, and high-speed PCBs, where material variation can affect process stability.

HGLaser SMT Laser Depaneling Solution

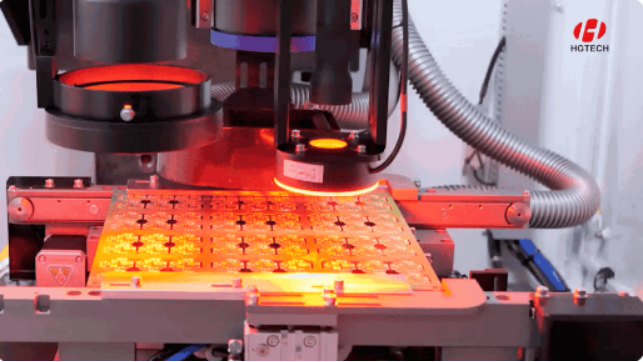

HGLaser Online SMT Laser Depaneling Machine uses 355 nm UV and 532 nm green lasers, designed for stress-free precision depaneling. It achieves ±25 μm processing accuracy with a minimal heat-affected zone, while its granite structure ensures long-term operational stability.

The system integrates a vision positioning module and supports rapid product changeover. It can be seamlessly connected with production lines and MES systems to enable fully automated loading, cutting, and unloading.

As a non-contact cold processing solution, it prevents board deformation and microcracks, delivering clean, burr-free edges without dust or carbonization, eliminating the need for post-processing. It is compatible with PCBs, PCBA, flexible boards, and Mini-LED backplanes, and is widely used in 3C and automotive electronics manufacturing.

The Intelligent Future of Automotive Electronics

For automotive electronics manufacturers, adopting laser PCB depaneling is not only a process upgrade but also a strategic move to enhance reliability, reduce total cost, and strengthen competitiveness.

Laser depaneling is transitioning from an optional process to a standard manufacturing technology in high-end automotive electronics, becoming a key driver of intelligent and high-quality production.
