Bevel Quality as a Downstream Constraint

In heavy fabrication industries such as shipbuilding, construction machinery, pressure vessels, and energy equipment, weld quality is increasingly defined at the cutting and preparation stage rather than during welding itself. Bevel accuracy directly influences fusion quality, stress distribution, and long-term structural reliability.

Traditional flame cutting and mechanical beveling still rely on a two-step process: cutting followed by secondary bevel machining. This separated workflow introduces cumulative geometric deviations, fixture alignment errors, and variability caused by tool wear.

As production shifts toward higher automation and tighter quality requirements, this approach becomes increasingly difficult to control. Manufacturers are now re-evaluating whether beveling must remain a separate operation or can be integrated directly into the cutting process.

Process-Integrated Laser Bevel Cutting

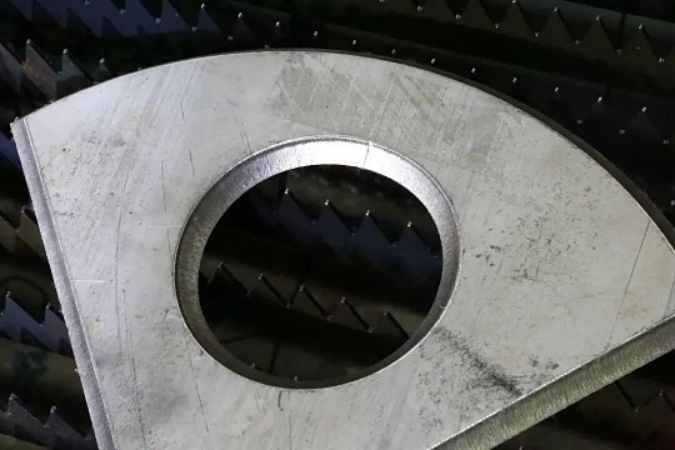

Laser bevel cutting integrates bevel generation directly into the cutting process through coordinated control of a high-power laser and multi-axis motion system. By adjusting the cutting head inclination and process parameters in real time, the system forms both the cut edge and bevel geometry in a single operation.

This eliminates the need for secondary machining or part re-clamping, significantly reducing positioning errors and improving geometric consistency across production batches.

Unlike mechanical beveling, where tool wear and contact conditions affect output quality, laser bevel cutting is fully defined by digital toolpaths. This ensures stable repeatability, even in high-volume production environments.

Another key advantage is precise thermal control. The laser provides a highly concentrated energy input, enabling localized melting with a stable molten pool and a reduced heat-affected zone (HAZ). This is especially important for high-strength steels and thick plate applications, where excessive thermal input can cause distortion, residual stress, and reduced fatigue performance.

From a production perspective, beveling is no longer a standalone bottleneck. It is embedded directly into the cutting cycle, improving line balance and reducing overall cycle time. This is particularly valuable in automated production systems where takt time and process synchronization are critical.

In applications such as shipbuilding, it ensures consistent long-seam weld preparation. In construction machinery, it improves structural durability under dynamic loads. In energy equipment manufacturing, it enhances long-term operational safety and reliability.

When integrated with automation systems such as automated loading, inline inspection, and MES platforms, bevel parameters and process data can be fully digitized. This enables traceable and data-driven manufacturing, reducing reliance on operator experience and improving process stability.

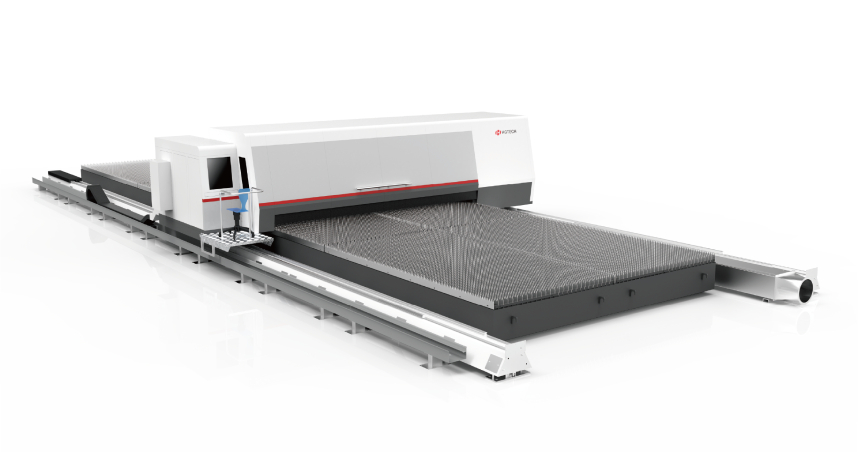

HGLaser WALC Series Large-Format Laser Bevel Cutting Machine (WALC1860P)

The HGLaser WALC1860P is a five-axis laser bevel cutting machine designed for medium-to-thick plates and large steel structures. Equipped with a 6–20 kW fiber laser, it supports a working area of up to 22 m × 4.5 m and can process V-, Y-, X-, K-, and variable-angle bevels.

Featuring a Siemens 840D SL control system and HGLaser’s proprietary bevel cutting head, the machine delivers stable bevel cutting on 10–40 mm carbon steel with ±0.5° bevel angle accuracy. Integrating marking, straight cutting, and bevel cutting in one system, it is ideal for shipbuilding, bridge construction, steel structures, and construction machinery manufacturing.

From Cutting Efficiency to Welding

The key value of laser bevel cutting is not increased cutting speed, but improved predictability in welding performance.

When bevel geometry, edge quality, and thermal influence are consistently controlled at the cutting stage, welding becomes a stable and repeatable process rather than a corrective operation. This reduces reliance on downstream adjustments and improves overall fabrication reliability.

In modern intelligent manufacturing systems, bevel preparation is evolving from a separate machining step into a core process interface that defines welding quality. Laser bevel cutting represents this transition, where cutting and welding preparation are merged into a single controlled workflow.
